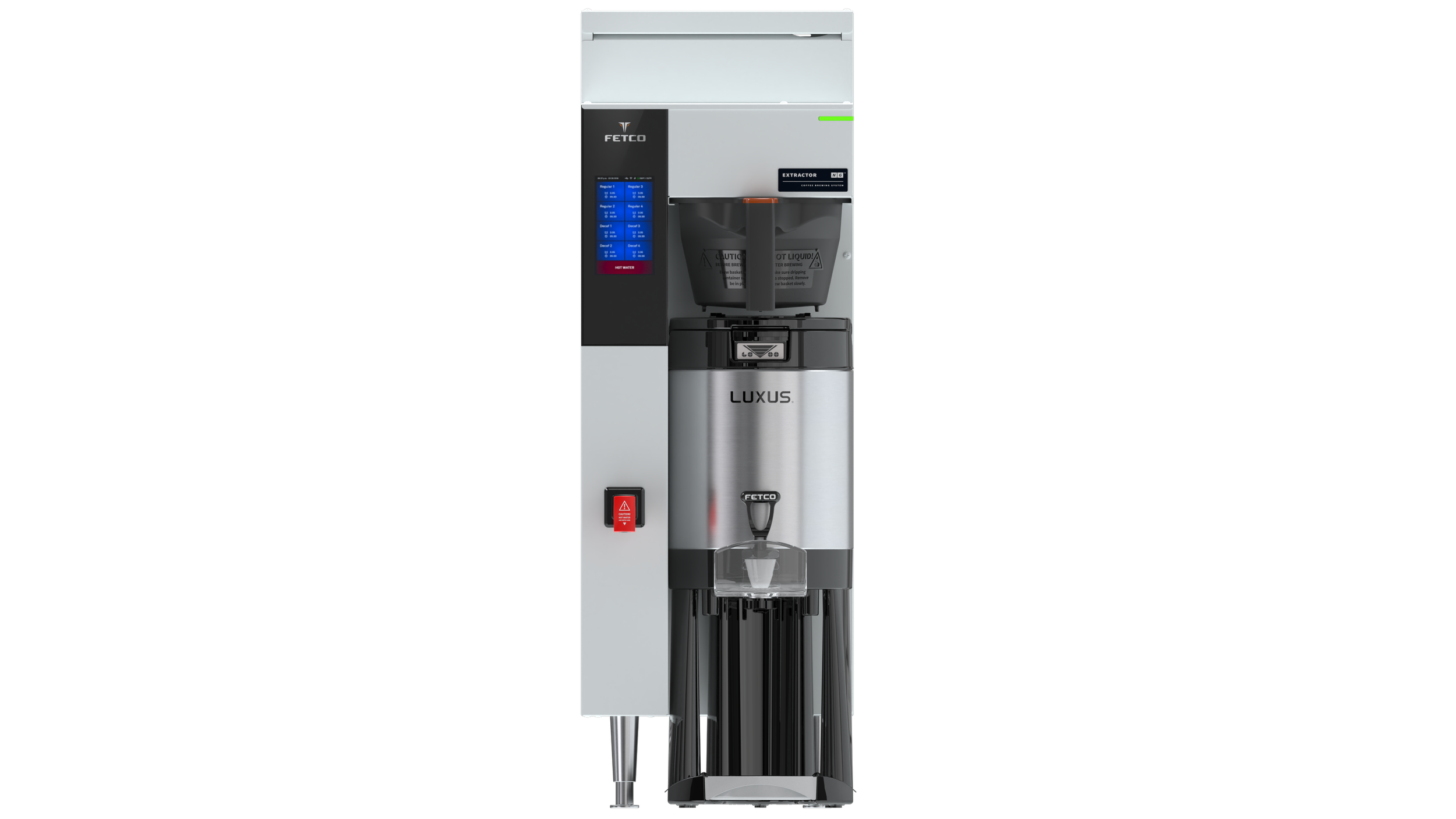

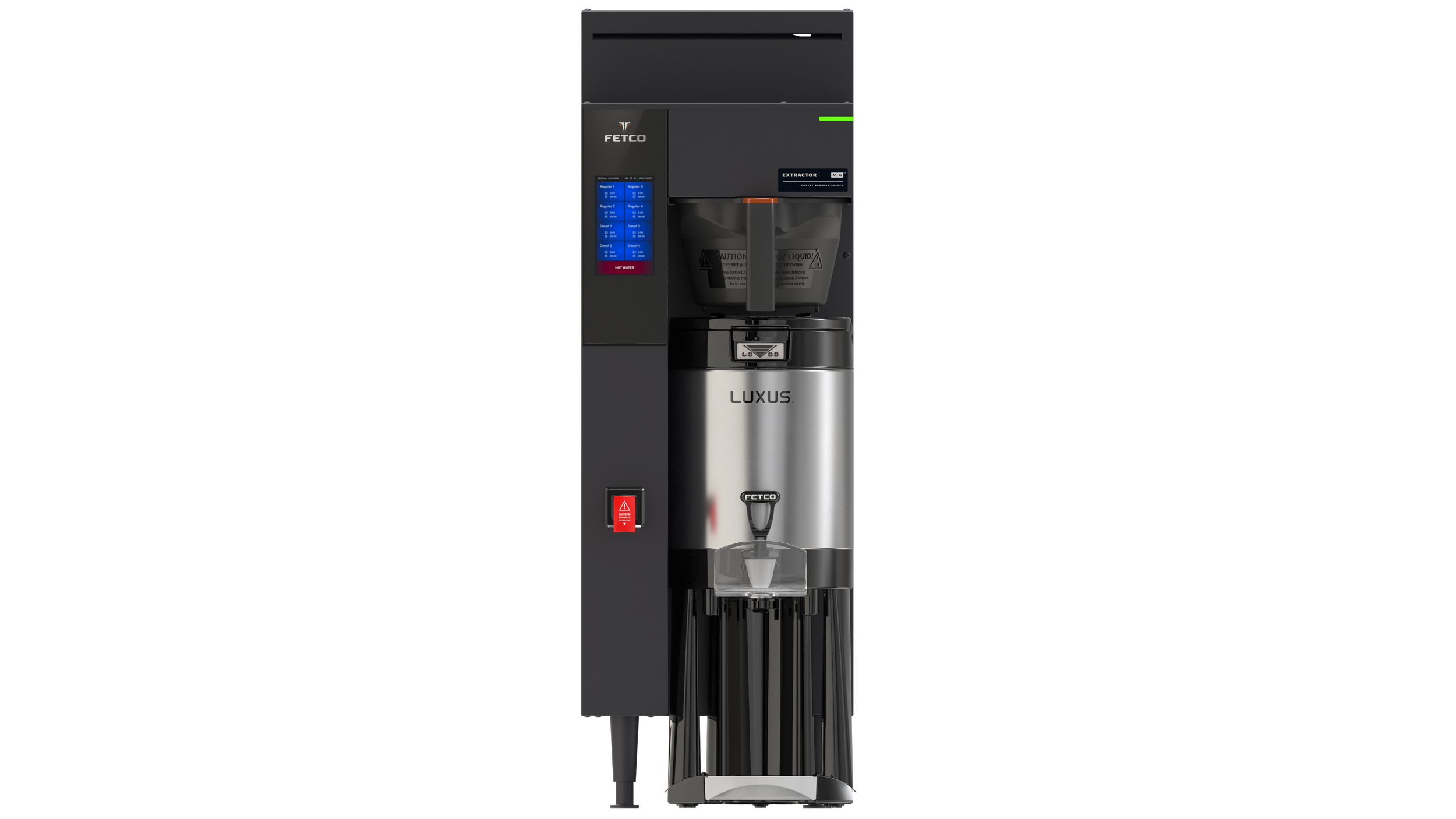

CBS-2241 NG Single Coffee Brewer (1 Gal)

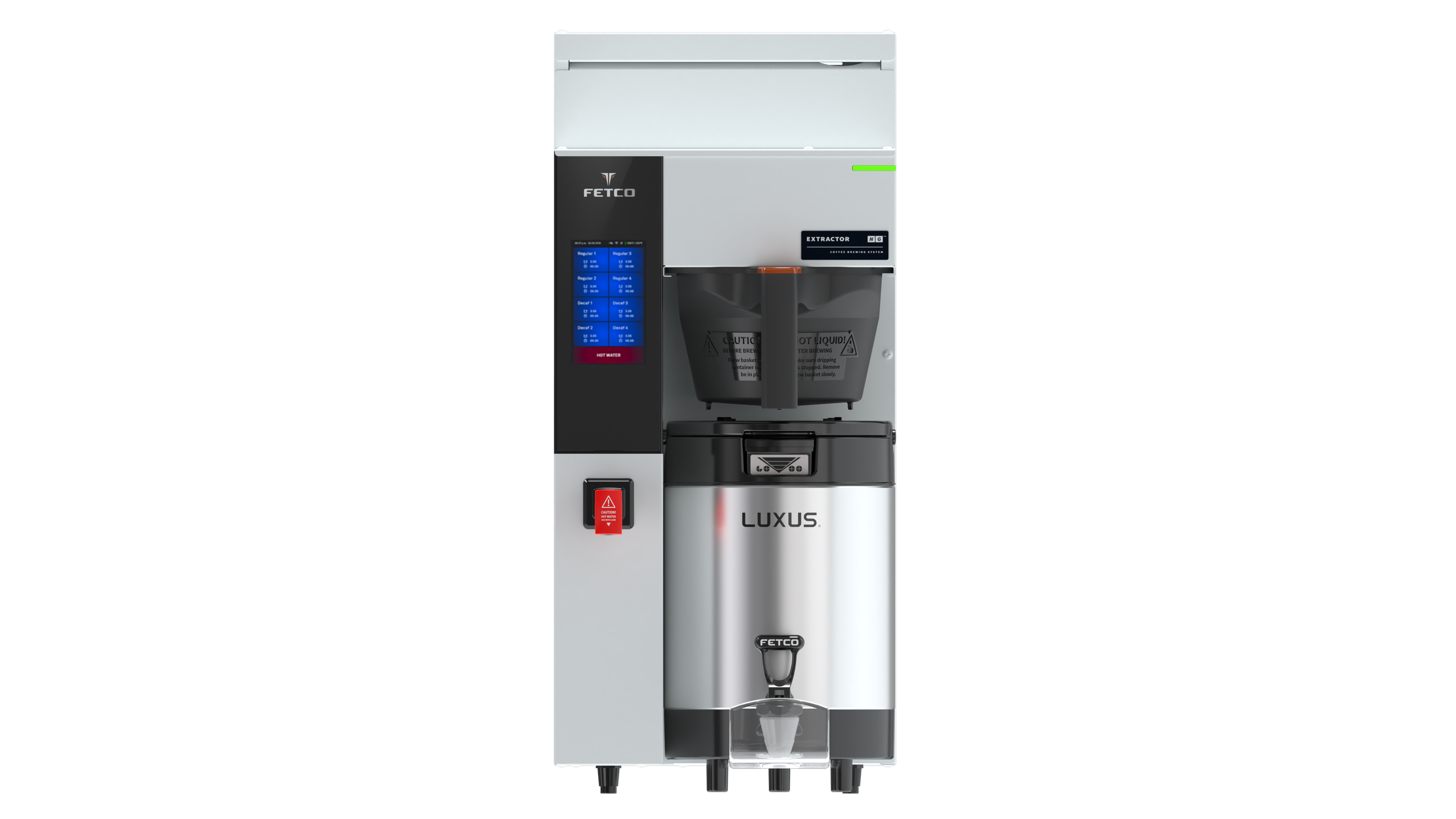

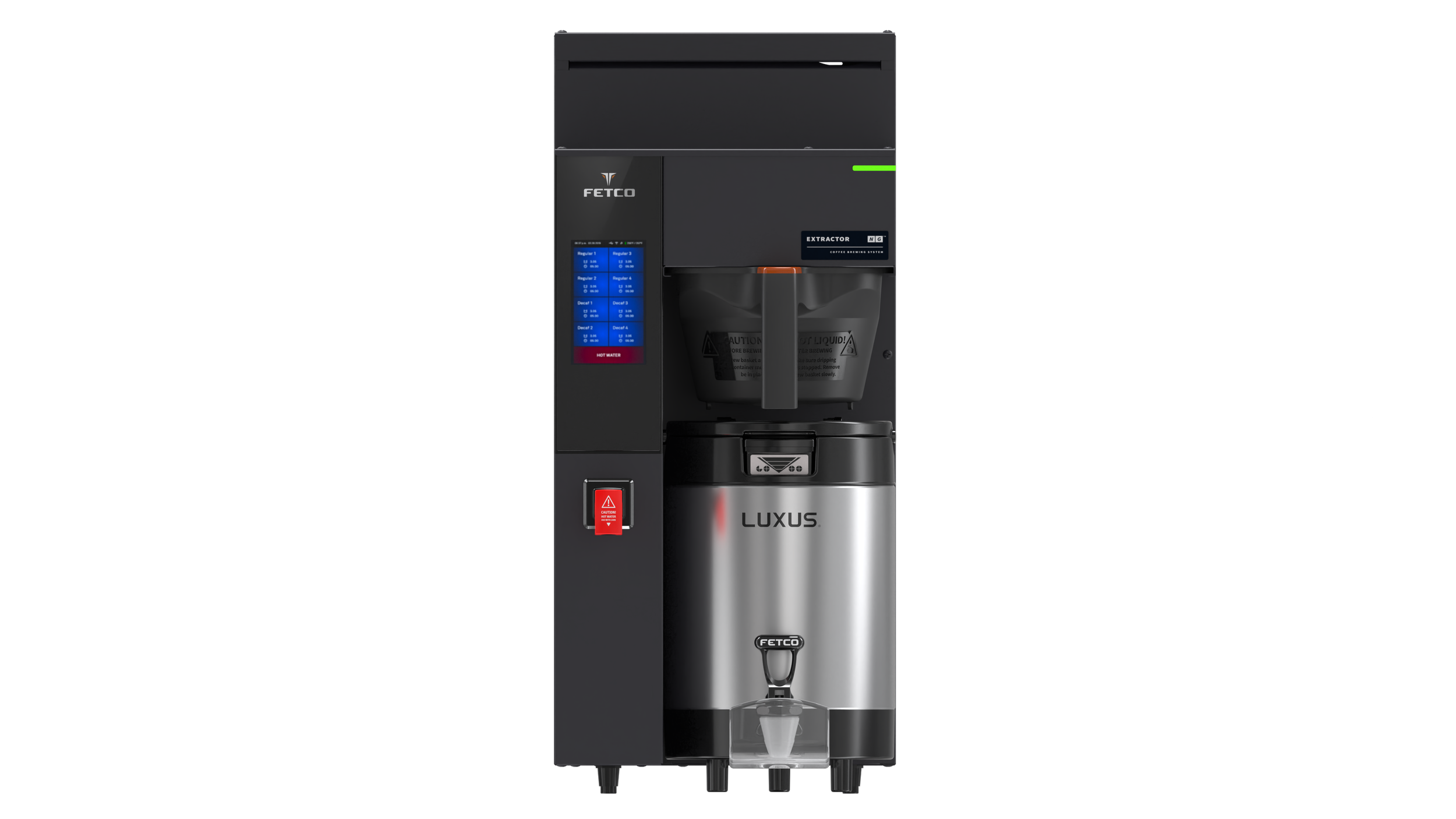

Now available in 3 finishes! Choose from Stainless Steel, Matte Black and Matte White
The CBS-2241 NG Single Station Coffee Brewer is a perfect hot beverage solution in medium- to large-sized venues such as Banquet Halls, Cafeterias and Restaurants. Designed specifically for high-volume batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor® branded products at a competitive price.
Standard Features:
LED Touchscreen Interface
Brew Status Indicator Light
Plastic Brew Basket
Brew Basket Sensors and Locks
Auto Hot Water Faucet
ECO Mode
USB Plug-in Feature
Electrical Lattice
Laser Welded Tank
Now available in 3 finishes! Choose from Stainless Steel, Matte Black and Matte White
The CBS-2241 NG Single Station Coffee Brewer is a perfect hot beverage solution in medium- to large-sized venues such as Banquet Halls, Cafeterias and Restaurants. Designed specifically for high-volume batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor® branded products at a competitive price.
Standard Features:
LED Touchscreen Interface
Brew Status Indicator Light
Plastic Brew Basket
Brew Basket Sensors and Locks
Auto Hot Water Faucet
ECO Mode
USB Plug-in Feature
Electrical Lattice
Laser Welded Tank
Specifications
Measurements
Height: 34.5 in / 87.6 cm
Width: 11.75 in / 29.9 cm
Depth: 20.5 in / 52 cm
Shipping Weight: 50 lbs / 23 kg
Capacity
Tank Capacity: 4.10 G / 15.5 L
8 oz / 236 ml cup/hr: 145
12 oz / 355 ml cup/hr: 96
16 oz / 473 ml cup/hr: 72
20 oz / 591 ml cup/hr: 58
Standard Electrical Configurations
Electrical Connection: Cord and Plug
Volts: 120 or 120/240
Amps: 12.8-19.7
Phase: Single
*Please see international spec sheet for additional configurations
Water Specifications
Water Inlet Size: 3/8" (Male Flare)
Minimum Flow Rate: 1.5 gpm
Water Pressure Requirement: 20-75 psig
Resources
Compatible Accessories
This 1.0 gallon size LUXUS® Thermal Server is a stylish self-serve option for hotel lobbies, breakrooms, office coffee service, C-Stores, and anywhere cups per hour volume is light or countertop space is limited.
Standard features of the innovative L4 series include the digital Freshness Timer® and Volume Indicator. The Freshness Timer® digitally displays how long the beverage has been held with a series of clocklike icons that fill in over time. The Volume Indicator shows how much liquid has been dispensed in .25 gallon increments with a “V” shape that gradually disappears. These features are critical for the operator monitoring liquid levels and maintaining uninterrupted beverage service.
The interior construction features a high-quality stainless-steel vacuum liner with superior insulative properties for optimum retention of heat, freshness and flavor. The durable stainless steel outer body construction is attractive yet withstands harsh conditions associated with daily use, cleaning, handling and transportation.
The generous built-in carry handle assures safe and comfortable transportation to any location. A see-through faucet guard (not shown) helps prevent cross-contamination by keeping container openings away from the spout.
For proper dispensing, the L4S-10 must be used with a serving station stand. Single, double, and triple serving stations are available so you can customize your hot beverage presentation with multiple flavor offerings. (serving stations sold separately)
Most compatible for direct brewing with CBS-2130 and CBS-1230 series brewers. Also compatible with CBS-2140XTS series brewers however serving station stand must be used. (sold separately)
Item SKU: D451
This 1.0 gallon LGS-10 LUXUS® Thermal Dispenser is a stylish self-serve option for hotel lobbies, breakrooms, office coffee service, C-Stores and anywhere cups per hour volume is light or countertop space is limited.
Standard features of the innovative LG series include:
New Lid Design
Brew cap snaps securely into place
Sure-Grip textured sides make removing the stem easy. Simply move the handle forward and the stem automatically lifts up for easy removal.
Direct access to the brew cap and funnel without removing the lid prevents moisture and heat from escaping to keep and fresh.
The top-mounted handle allows for quick and easy cleaning and maintenance.
Dispenser Features
Use with A147 single stand, A148 twin stand or A149 triple stand
The interior construction features a high-quality stainless-steel vacuum liner with superior insulative properties for optimum retention of heat, freshness and flavor.
The durable stainless steel outer body construction is attractive yet withstands harsh conditions associated with daily use, cleaning, handling and transportation.
An integrated stand means it’s always ready for immediate display in the service area and no searching for a separate serving station.
The 2-piece drip tray built-in to the base is completely removable for thorough sanitization.
A transparent faucet guard helps prevent cross-contamination by keeping container openings away from the spout.
Most compatible for direct brewing with CBS-2130XTS and CBS-2140 series brewers.
Item SKU: D482
This 1.0 gallon LGD-10 LUXUS® Thermal Dispenser is a stylish self-serve option for hotel lobbies, breakrooms, office coffee service, C-Stores and anywhere cups per hour volume is light or countertop space is limited.
Standard features of the innovative LG series include:
New Lid Design
Brew cap snaps securely into place
Sure-Grip textured sides make removing the stem easy. Simply move the handle forward and the stem automatically lifts up for easy removal.
Direct access to the brew cap and funnel without removing the lid prevents moisture and heat from escaping to keep and fresh.
The top-mounted handle allows for quick and easy cleaning and maintenance.
Dispenser Features
The interior construction features a high-quality stainless-steel vacuum liner with superior insulative properties for optimum retention of heat, freshness and flavor.
The durable stainless steel outer body construction is attractive yet withstands harsh conditions associated with daily use, cleaning, handling and transportation.
An integrated stand means it’s always ready for immediate display in the service area and no searching for a separate serving station.
The 2-piece drip tray built-in to the base is completely removable for thorough sanitization.
A transparent faucet guard helps prevent cross-contamination by keeping container openings away from the spout.
Most compatible for direct brewing with CBS-2140XTS series brewers.
Item SKU: D479


This 1.0 gallon L4D-10 LUXUS® Thermal Dispenser is a stylish self-serve option for hotel lobbies, breakrooms, office coffee service, convenience stores and anywhere cups per hour volume is light or countertop space is limited. Standard features of the innovative L4 series include the digital Freshness Timer® and Volume Indicator. The Freshness Timer® digitally displays how long the beverage has been held with a series of clocklike icons that fill in over time. The Volume Indicator shows how much liquid has been dispensed in .25 gallon increments with a “V” shape that gradually disappears. These features are critical for the operator monitoring liquid levels and maintaining uninterrupted beverage service. The funnel is designed to withstand high temperatures, impact and acidity. The top-mounted handle allows for quick and easy cleaning and maintenance. Direct access to the brew cap and funnel without removing the lid prevents moisture and heat from escaping to keep liquids hot and fresh. The interior construction features a high-quality stainless-steel vacuum liner with superior insulative properties for optimum retention of heat, freshness and flavor. The durable stainless steel outer body construction is attractive yet withstands harsh conditions associated with daily use, cleaning, handling and transportation. An integrated stand means it’s always ready for immediate display in the service area and no searching for a separate serving station. The 2-piece drip tray built-in to the base is completely removable for thorough sanitization. The collapsible carry handle is strong and assures safe and comfortable transportation to any location. A transparent faucet guard helps prevent cross-contamination by keeping container openings away from the spout. Most compatible for direct brewing with CBS-2140XTS series brewers.
Item SKU: D448
