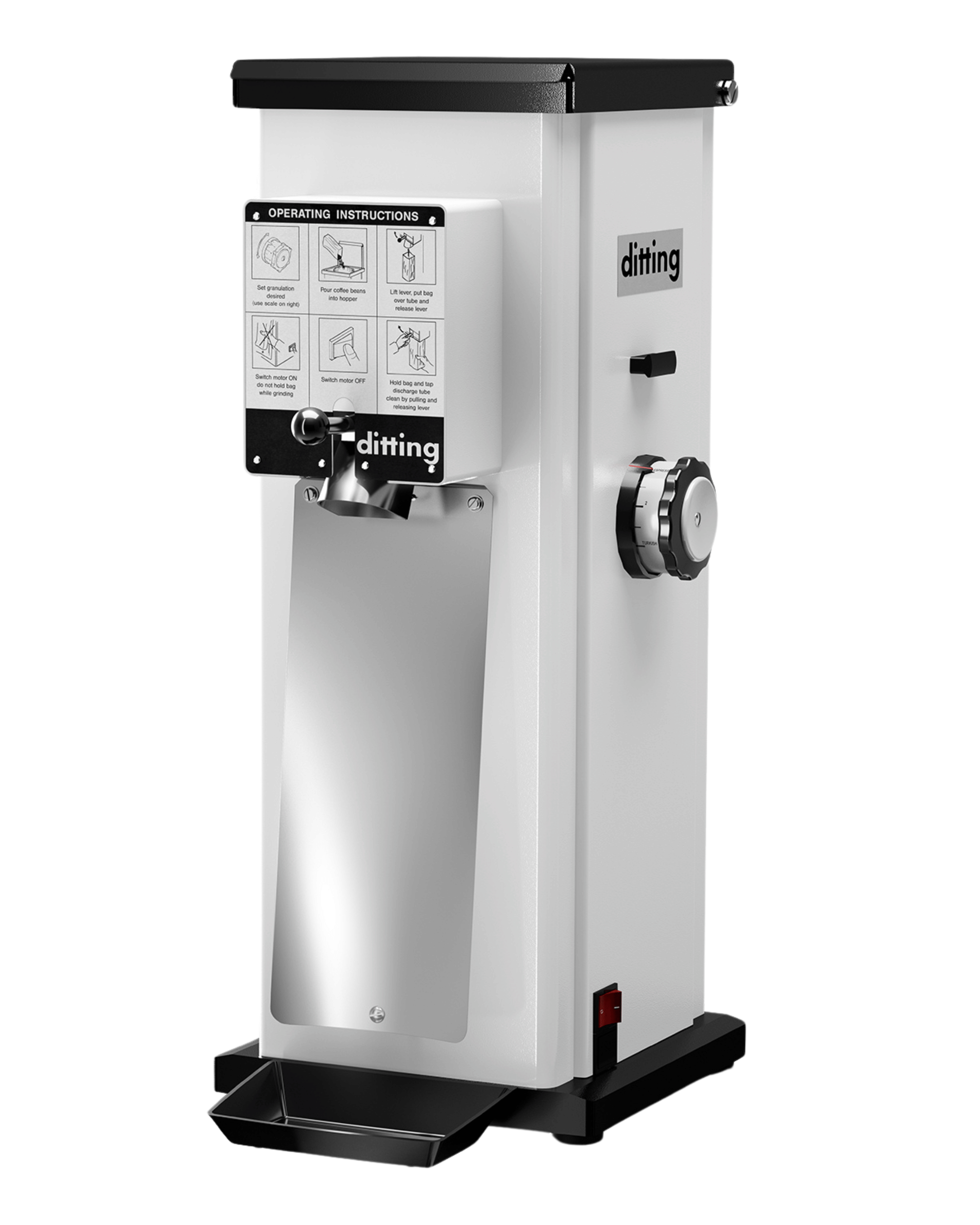

Ditting 1403 Shop Grinder

$0.00

The 1403 convinces with its immense grind speed, powerful performance and high daily capacity. It is the ideal solution for busy coffee shops as well as roasteries with high workloads.

The 1403 convinces with its immense grind speed, powerful performance and high daily capacity. It is the ideal solution for busy coffee shops as well as roasteries with high workloads.

    • Specially developed 140 mm burrs allow high grinding capacity for all grind adjustment steps

    • Wear-resistant steel burrs

    • Aromasaving consistent grinding

    • Stepless grind adjustment

    • Minimal retention of coffee residues left inside the slide thanks to the manual knocker

    • Bag shaking device ensures an optimal filling of the bags

    • Very easy to maintain and to clean

  • Voltage // frequencies // phases:

    • 380-415 V // 50/60 Hz // 3~

    • 200-240 V // 50/60 Hz // 3~

    Revolutions per minute: 1400 rpm (50 Hz)

    Burr diameter: 140 mm

    Burr material: Special steel

    Burr grind life (median setting): ca. 10-15 tons

    Average grinding capacity*: 2200 g/min

    Bean hopper capacity: approx. 1100 g

    Nominal power: 1700-2000 W

    Dimensions (w x h x d): 260 x 640x 340mm

    Dimensions of packing (w x h x d): 330 x 730 x 400 mm

    Net weight: 38kg

    Shipping weight: 40kg

    Standard colors:

    • Jet black

    • Brown beige

    • Ruby red

    • Signal white

    Available versions:

    • KFA: Automatic bag clamp (no bag shaking unit)

    • KR: Manual bag clamp (with bag shaking unit)

    Listings: CE-conform, CB, UL, NSF, Additional on request

    Standards: IEC/EN 60335-1; IEC/EN 60335-2-64; ANSI/UL 763; ANSI/NSF 8 CSA-C22.2 No. 195, Additional on request

    EQUIPMENT FEATURES:

    • Powerful three-phase motor

    • Grind size adjustment with extraction information

    • KR: Bag clamping lever and knocker unit

    • KR: Shaker plate

    OPTIONAL ACCESSORIES:

    • 140 mm special steel burrs for Turkish fine cut

    • 140 mm special steel burrs for increased grind speed and coarser grinding

    • Extra-wide range of grind size adjustment

    • Ground coffee cup

    • Customized RAL-color, according to current special color price list

    * Depends on the grinding goods and the chosen degree of fineness. All measured values under laboratory conditions. Other electric specifications available on request. Subject to change without prior notice.
