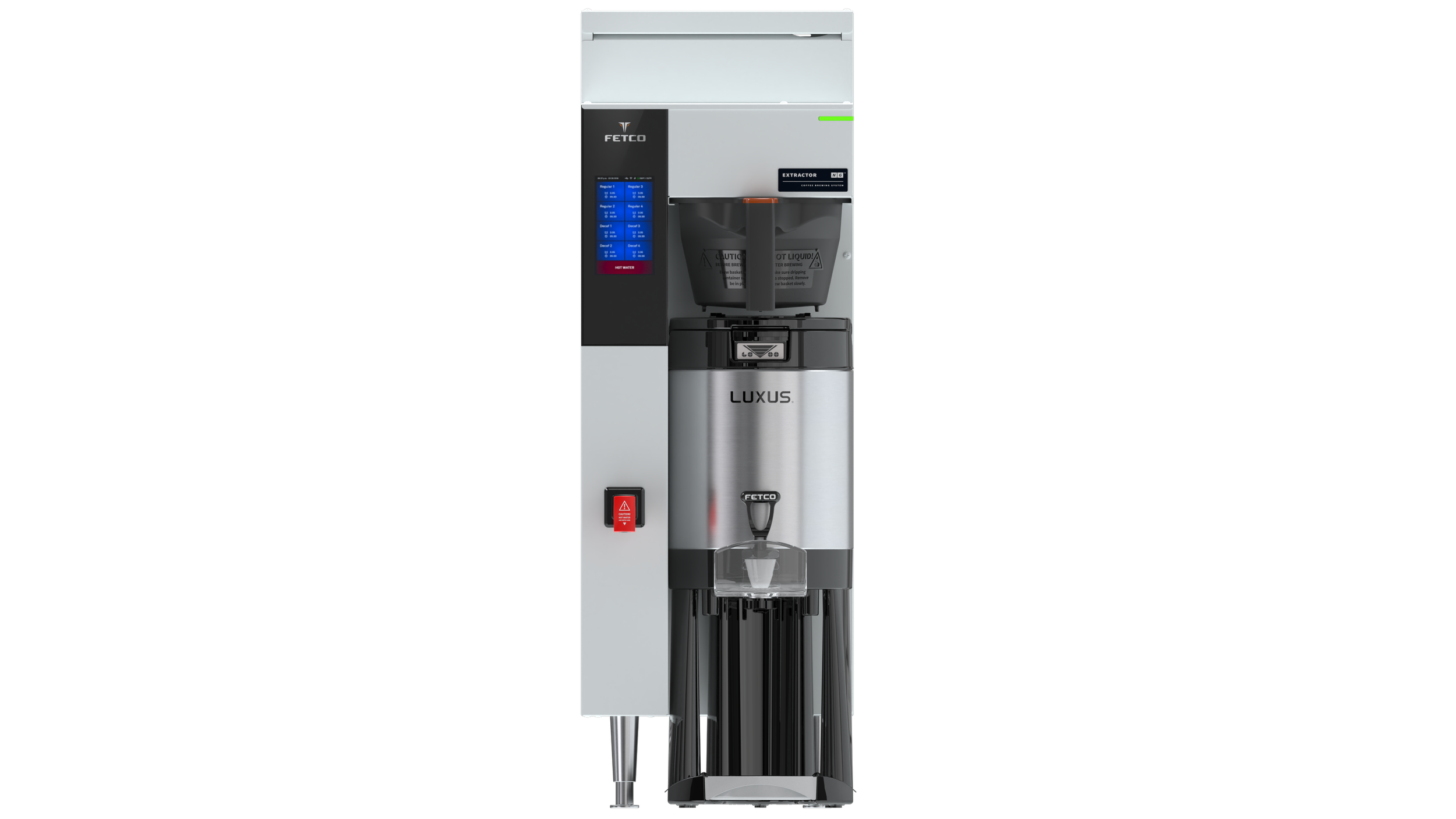

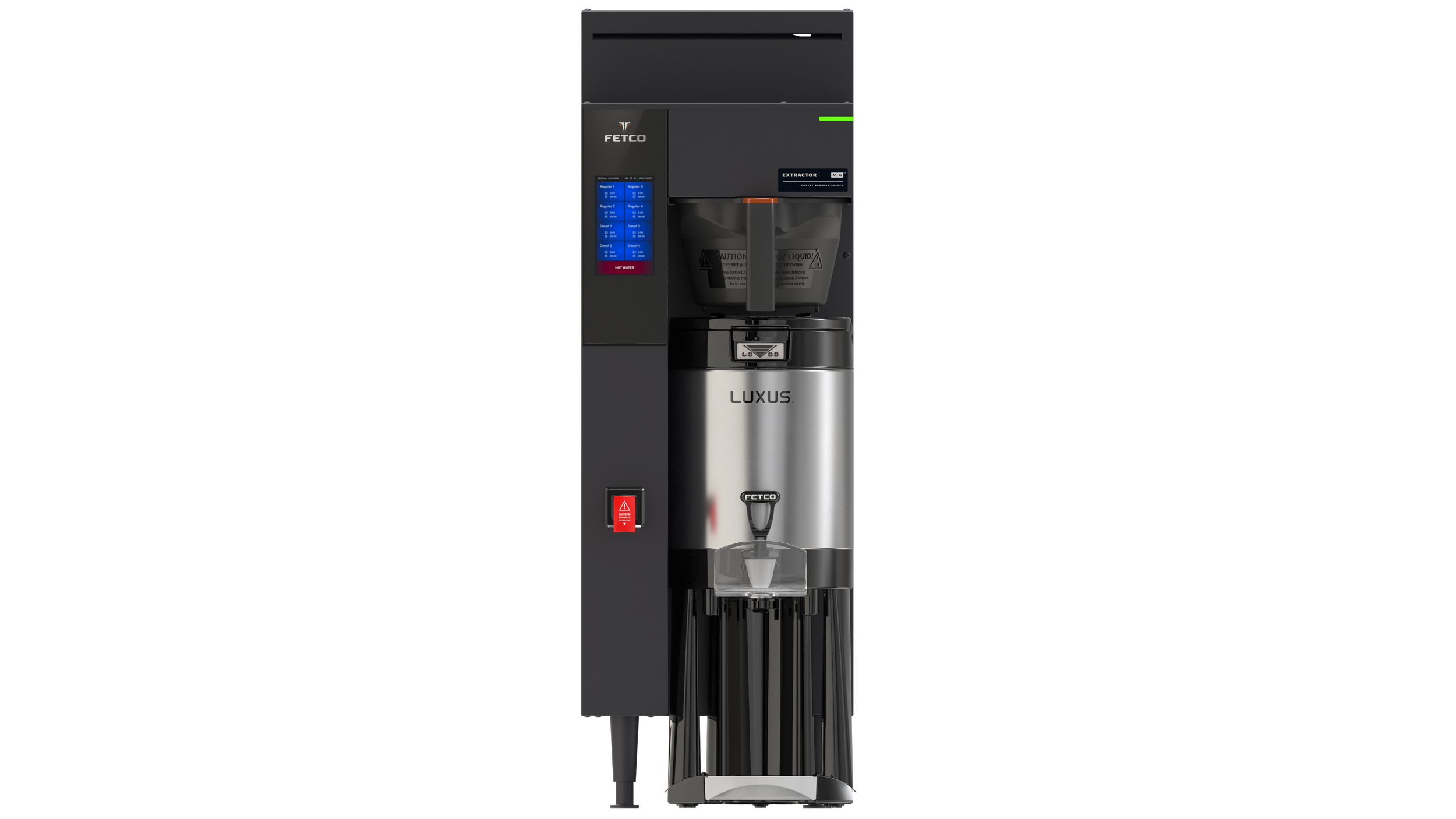

CBS-2241 NG Single Station Coffee Brewer
The CBS-2241 NG Single Station Coffee Brewer is a perfect hot beverage solution in medium- to large-sized venues such as Banquet Halls, Cafeterias and Restaurants. Designed specifically for high-volume batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor® branded products at a competitive price.
Standard Features:
LED Touchscreen Interface
Brew Status Indicator Light
Plastic Brew Basket
Brew Basket Sensors and Locks
Manual Hot Water Faucet
ECO Mode
USB Plug-in Feature
Electrical Lattice
Laser Welded Tank
Specifications
Measurements
Height: 34.5 in / 87.6 cm
Width: 11.75 in / 29.9 cm
Depth: 20.5 in / 52 cm
Shipping Weight: 50 lbs / 23 kg
Capacity
Tank Capacity: 4.10 G / 15.5 L
8 oz / 236 ml cup/hr: 145
12 oz / 355 ml cup/hr: 96
16 oz / 473 ml cup/hr: 72
20 oz / 591 ml cup/hr: 58
Standard Electrical Configurations
Electrical Connection: Cord and Plug
Volts: 120 or 120/240
Amps: 12.8-19.7
Phase: Single
*Please see international spec sheet for additional configurations
Water Specifications
Water Inlet Size: 3/8" (Male Flare)
Minimum Flow Rate: 1.5 gpm
Water Pressure Requirement: 20-75 psig
